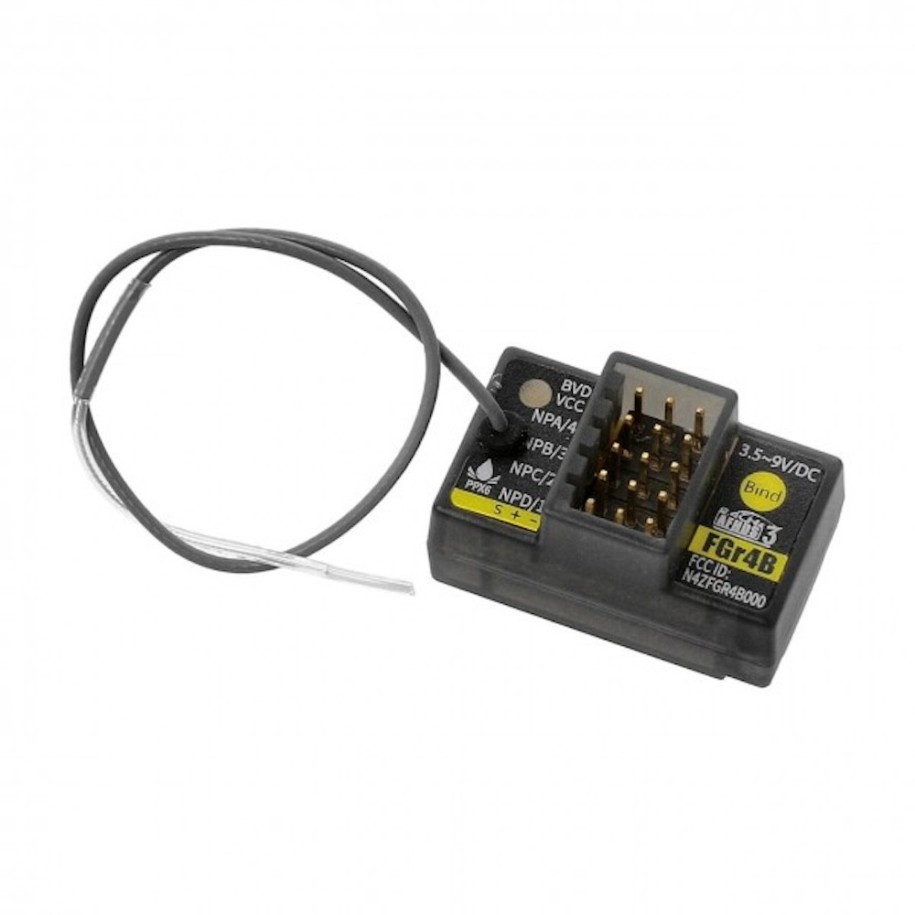

The FGr4B receiver is the ideal support when using a Flysky remote control. The receiver makes use of a technology used by several Flysky transmitters

- the automatic frequency hopping digital system (short: AFHDS3). With a bidirectional transmission system via the antenna, this receiver is specially designed for the installation and output of PWM/PPM/i-BUS out/S.BUS signals. All AFHDS3-capable transmitters are supported.

Technical Specifications

PWM-Channels: 4 RF: 2.4GHz Protocol:

AFHDS 3 Antennas:

Dual Input Voltage:

3.5-9V Output:

PWM/PPM/i-BUS out/S.BUS

Temperature: -10°C to +60°C Max.

Humidity: 20%-95%

Update: Yes, online

Dimensions:

17x29x16mm

Weight: 6.4g

Suitable for: Cars, Boats, etc.

Compatible Transmitter: all AFHDS3-Transmitter and RF-Modules (PL18, Paladin EV, NB4, NB4 Lite etc.)
